- Cooling Capacity (MIN-MAX): 5616-24000 Btu/h
- Energy Saving: Upto 65% Energy Saving
- Condenser Type: Copper Tube Condenser with Golden Hydrophilic Fin
- Warranty: Compressor 12 Years, Main Board (PCB) 4 Years, Spare parts 4 Years
- Installation: Only product price and Setting and Wall angle price not included
Specifications

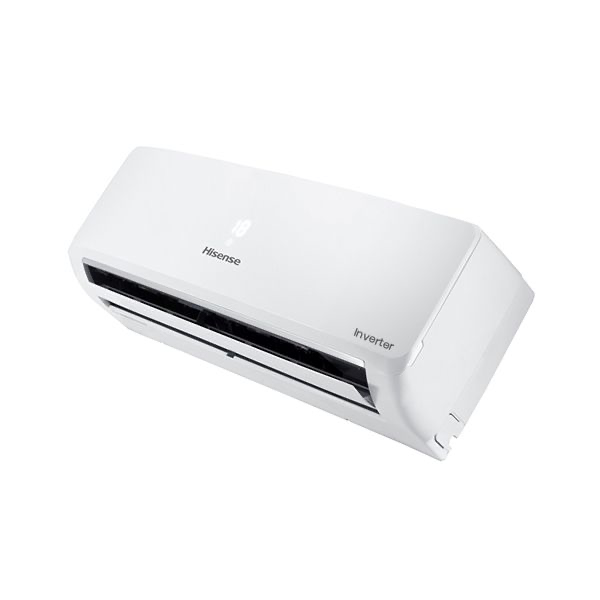

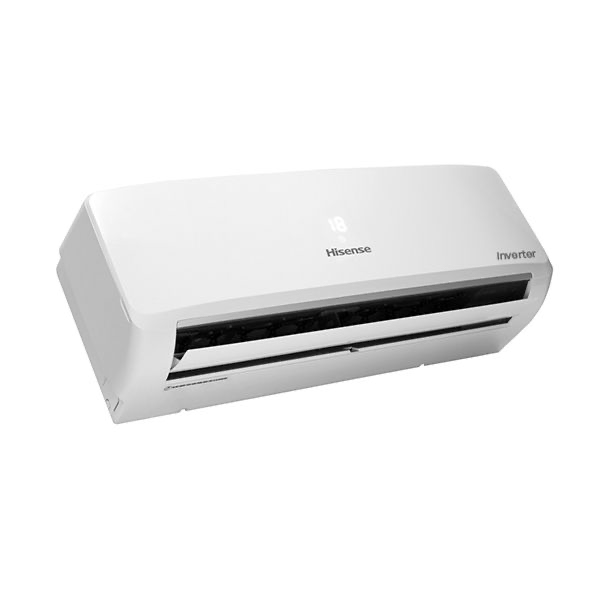

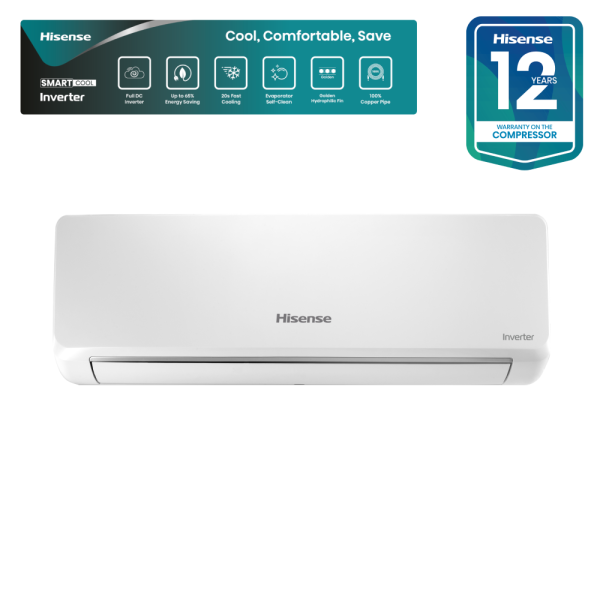

| Model No. | AS22TW4RXBTD00B | |
| Basic Specifications | Air Conditioner Type | Inverter |
| Air Conditioner Function | Cooling | |
| Cooling Capacity (MIN-MAX) (BTU/h) | 5616-24000 | |
| Cooling Capacity (W) | 6448 | |
| Capacity (MIN-MAX) | 5616-24000 Btu/h | |
| Rated Voltage (V) | 220-240V, 50 Hz | |
| Rated Input Power (W) | 2050 | |
| Rated Current (A) | 9.1 | |
| Climate Class | T1 | |
| EER (W/W) | 3.15 | |
| Noise Level (dB) Indoor (Mid Fan Speed) | 40 | |
| Noise Level (dB) Outdoor | 56 | |
| Connecting Pipe Length (m) | 4 | |
| Cooling Specifications | Refrigerant | R32 |
| Refrigerant Amount (kg) | 0.950 | |
| Evaporator Type | Copper Tube Evaporator | |
| Condenser Type | Copper Tube Condenser | |

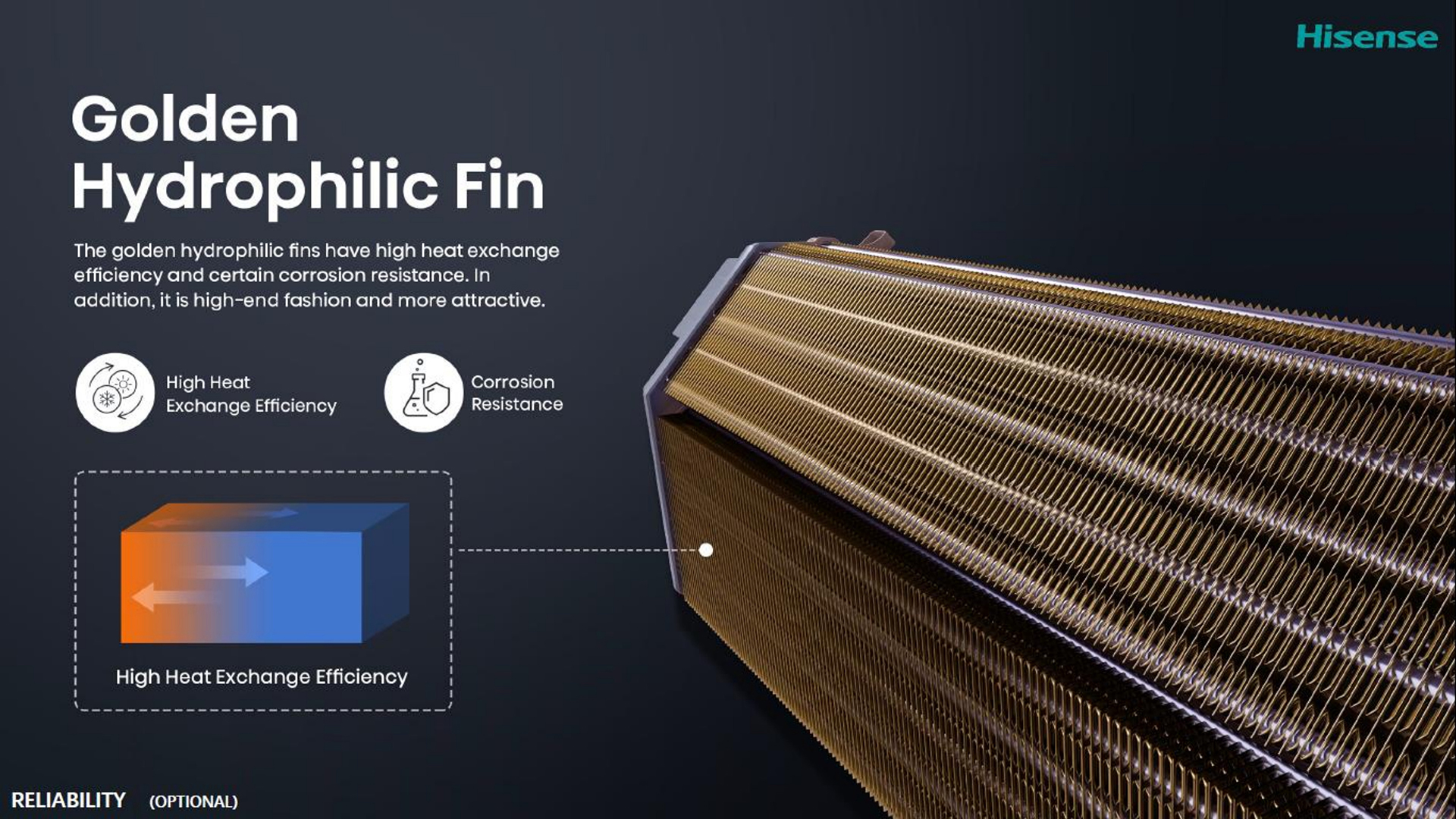

| Evaporator Fin Type | Golden Hydrophilic Fin | |

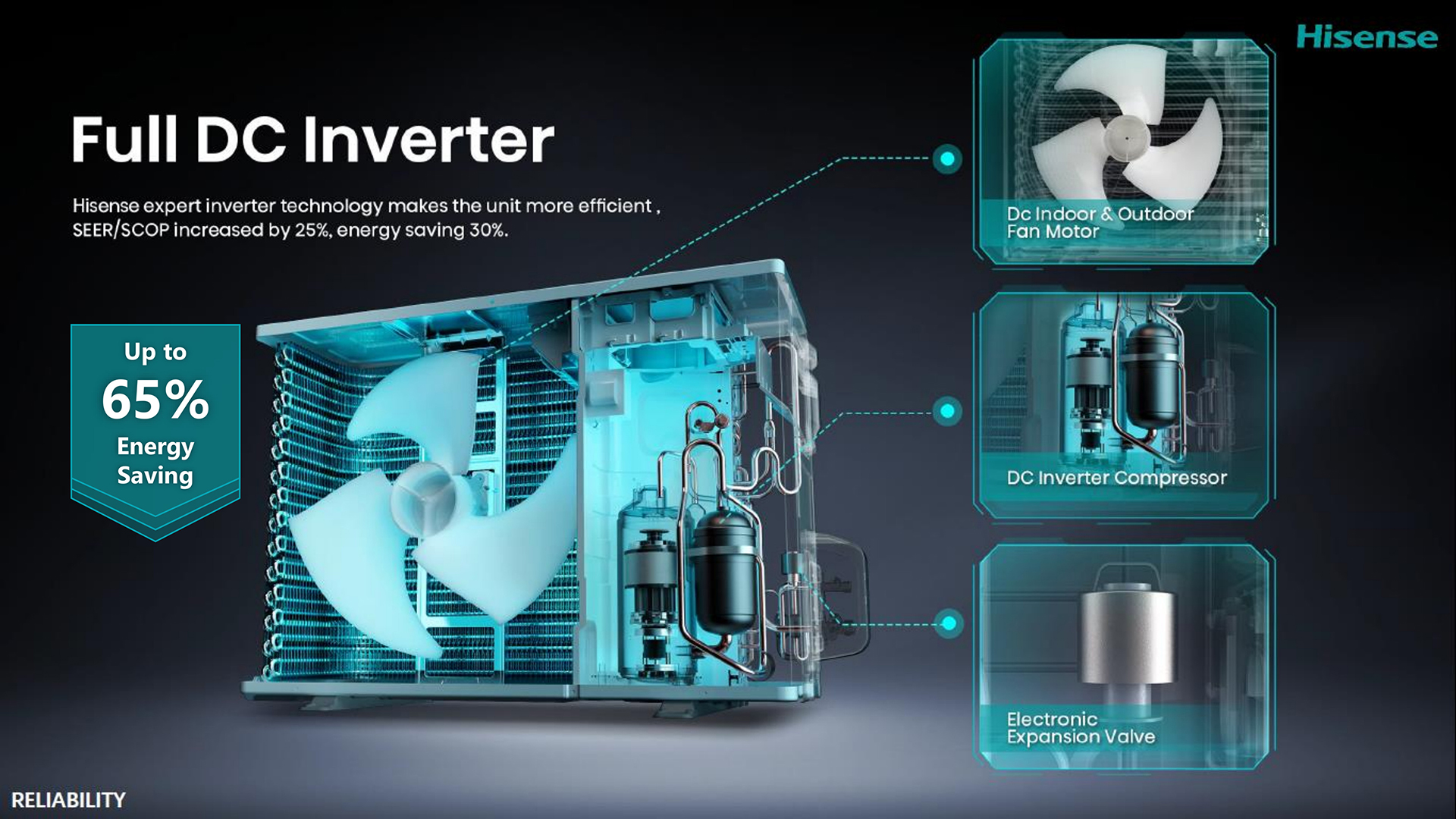

| Compressor Type | Rotary, Inverter | |
| Operating Features | Temperature Control Range | 16°C-30°C |

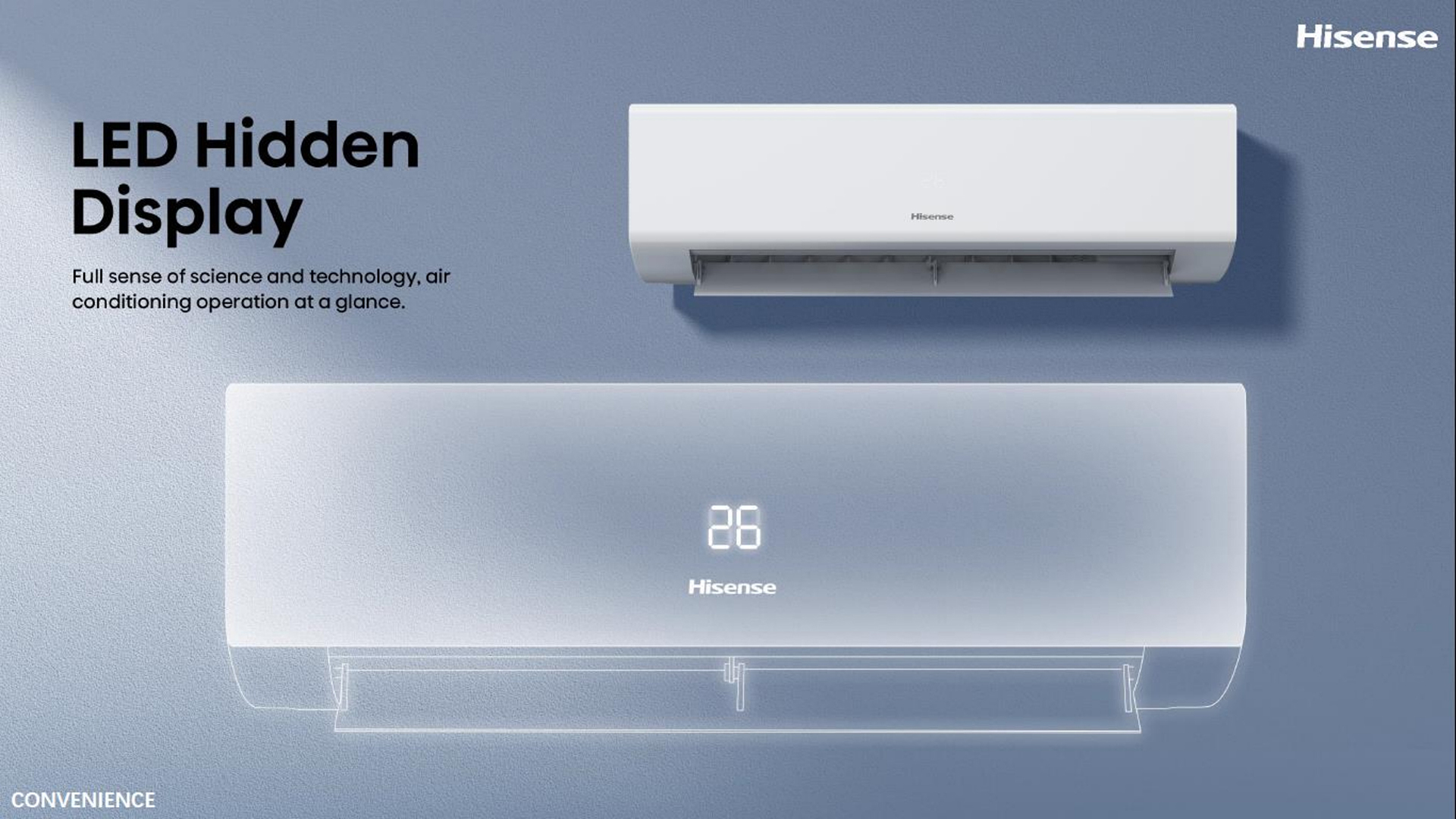

| Display Type (Indoor) | LED | |
| Display Dimmer | YES | |

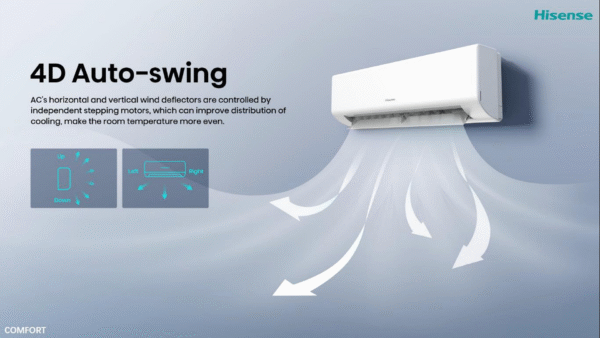

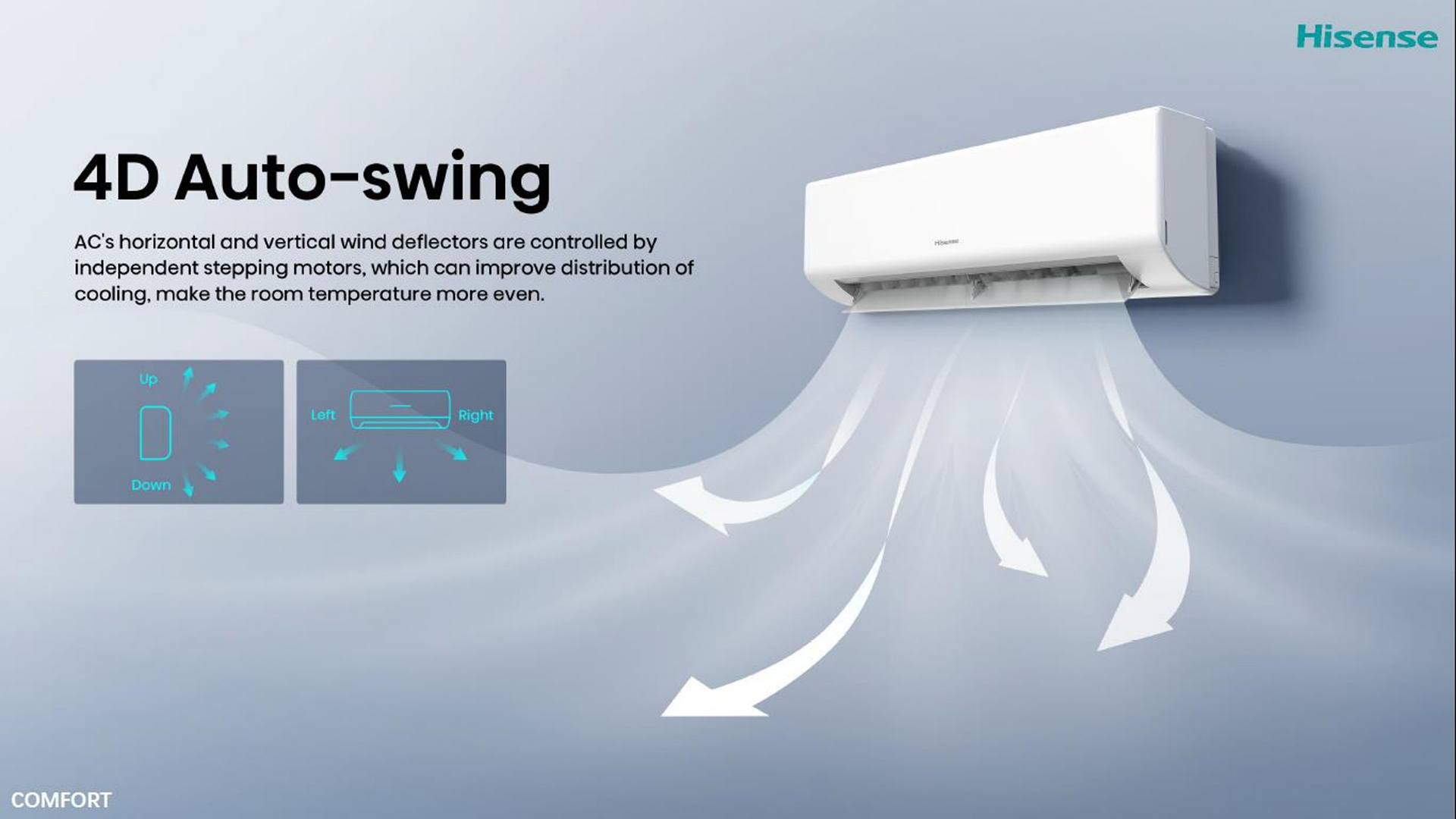

| Vertical Auto Swing Louver | YES | |
| Horizontal Auto Swing Louver | YES | |

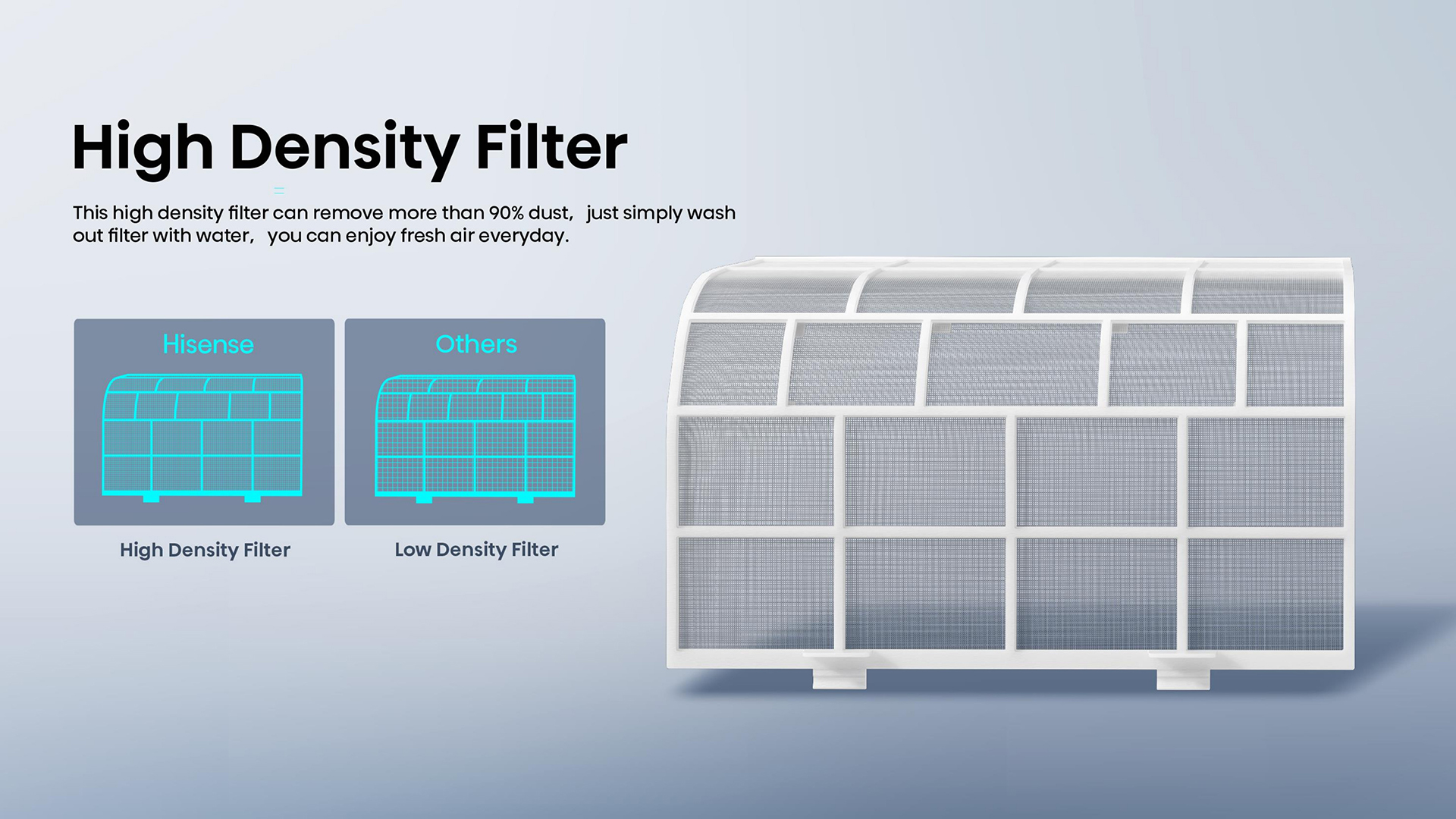

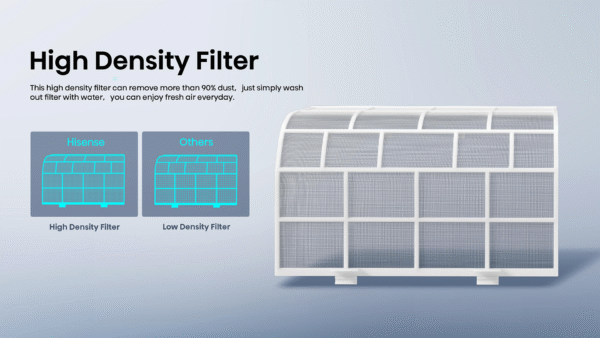

| Indoor Unit Filter | Washable PP Filter | |
| 24 Hour Timer | YES | |
| Sleep Operation | YES | |
| Super Function | YES | |
| Auto Restart | YES | |
| Self Cleaning | NO | |
| Refrigerant Leak Detection | YES | |
| Operation/Control | Wirelesss Remote Controlled | |
| 3 Speed and Auto Indoor Fan Control | YES | |
| Packing Information | Indoor Unit Net Dimension (LxWxH) mm | 1131 x 315 x 230 |
| Indoor Unit Packing Dimension (LxWxH) mm | 1220 x 400 x 310 | |
| Outdoor Unit Net Dimension (LxWxH) mm | 810 x 280 x 585 | |
| Outdoor Unit Packing Dimension (LxWxH) mm | 940 x 385 x 630 | |
| Indoor unit Net Weight (kg) | 14 | |
| Indoor unit Gross Weight (kg) | 16.5 | |
| Outdoor unit Net Weight (kg) | 33.5 | |
| Outdoor unit Gross Weight (kg) | 40.5 | |
| Warranty Information | Compressor | 12 Years |
| Main Board (PCB) | 4 Years | |
| Spare Parts | 4 Years | |
| Other | 2 Years Free Service | |
